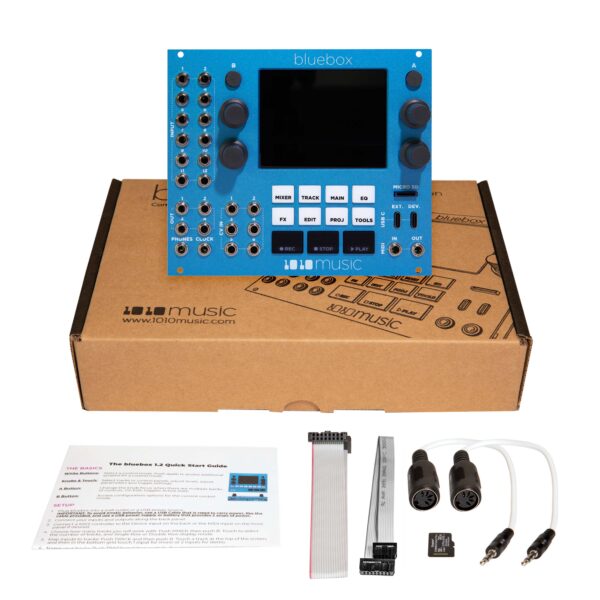

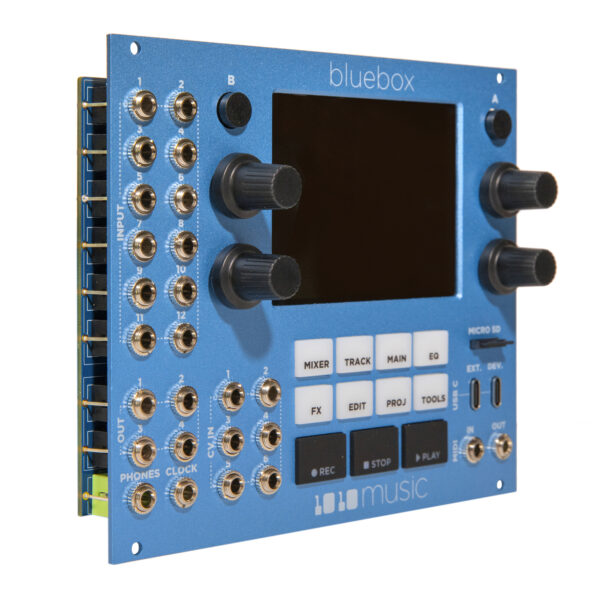

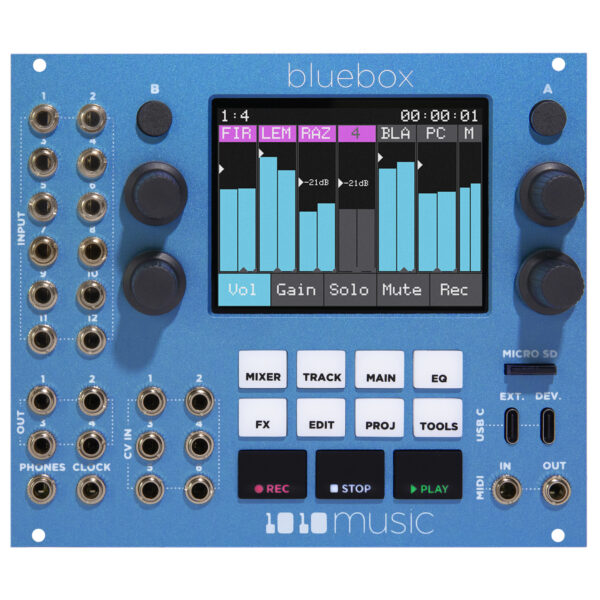

Digital Eurorack 12-Channel Audio Mixer and Recorder With USB audio streaming and integrated effects Mixing of 12 mono or 6 stereo tracks, both live and pre-recorded tracks Independent routing of each track to any combination of outputs: 4 mono / 2 stereo outputs Stereo headphone output 3.5″ Touch display 4-Band EQ (supports low cut/low shelf, parametric and high cut/high shelf settings for each band) Global reverb and delay effects Built-in global compressor recording/playback in 24-bit / 48 kHz WAV files to/from MicroSD card Save and recall project settings including all parameters for tracks, outputs, EQ and effects USB-C for external MIDI controllers and MIDI sync/clock Transport button and menu knob Incl. microSD card (with firmware and pre-installed project files), Eurorack power cable and 2 x MIDI adapters (3.5 mm TRS plug to 5-pin DIN MIDI jack) Connections: 12 Line inputs: 3.5 mm mini jack 6 CV inputs: 3.5 mm mini jack 4 Line outputs: 3.5 mm mini jack 1 Stereo headphone output: 3.5 mm mini jack 1 Clock output: 3.5 mm jack MIDI input and output: 3.5 mm mini jack 2 x USB-C
