hot water tempering valve

$ 39.06

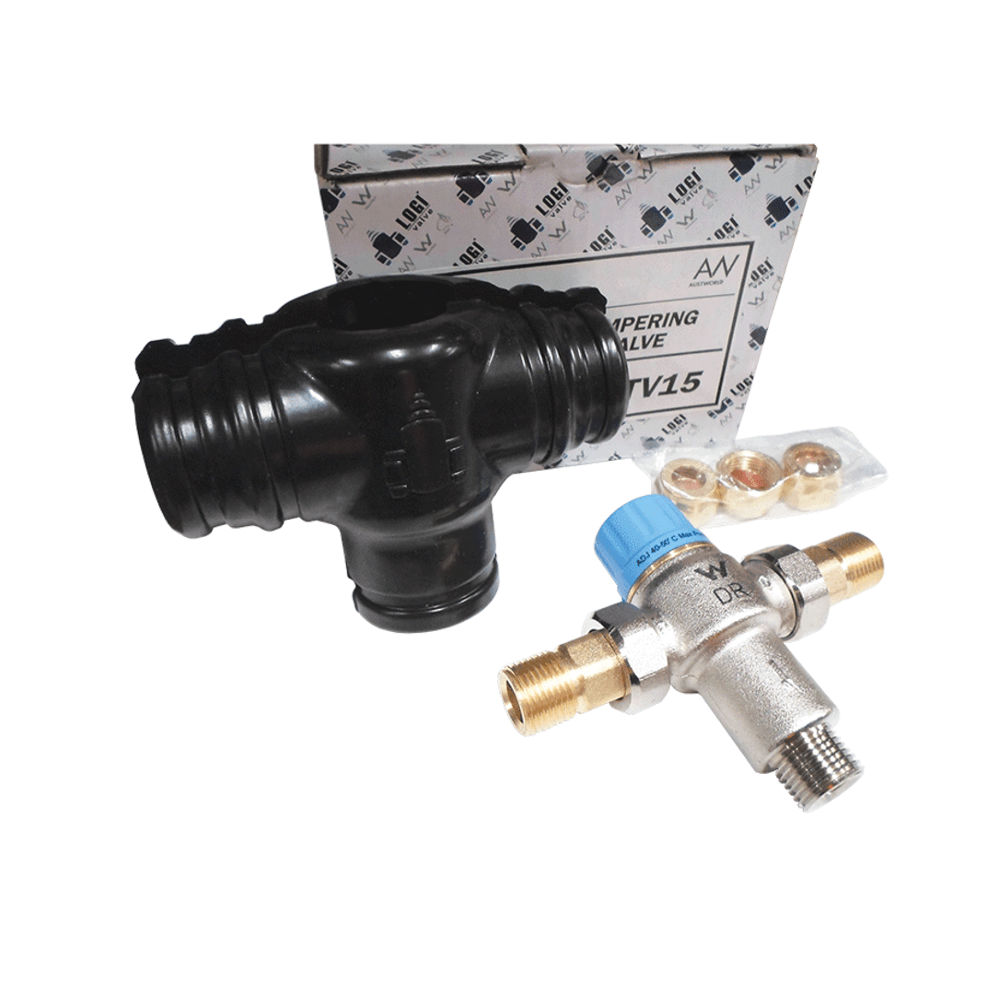

Hot water tempering valveThe Logi hot water tempering valve are a valve used in the process of mixing hot and cold water to deliver tempered water at a continuous temperature throughout a hot water system. The hot water tempering valve is appropriate for tempering the hot water to supply outlets used for personal hygiene purposes where the outlet temperature must not exceed the maximum of 50°C. FEATURES| Integral Mesh StrainersCast DR Brass BodyIntegral Non return ValvesInnovative Polymers for Greater Resistance to calcium depositsFactory set at 50°C (must be commissioned on site)Tamper Proof AdjustmentTested and Certified to AS 4032.2Insulation Jacket Provided as per AS4032.2Specifications Cold Water Supply Temperature: 5˚C – 30˚CHot Water Supply Temperature: 60˚C – 90˚C Set Temperature: 50˚C standard (must be commissioned onsite by installer) Adjustable Temperature: 40 – 50˚C Accuracy of Outlet Temperature: /- 3˚C (as per AS4032.2)Maximum Working Pressure (Static): 1400KpaMaximum Working Pressure (Dynamic): 500KpaMinimum Flow Rate: 3.6L/min under outlet pressure 10Kpa(All plumbing items must be installed by a licenced plumber)
