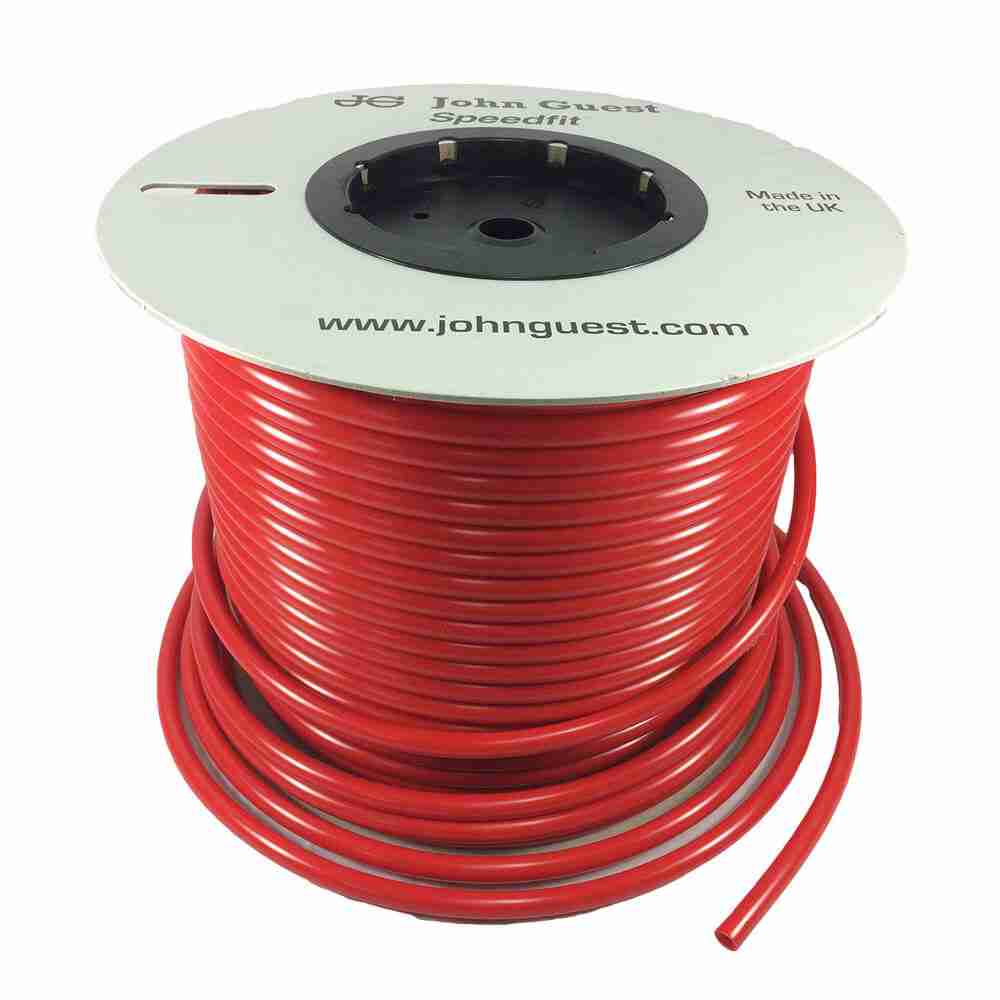

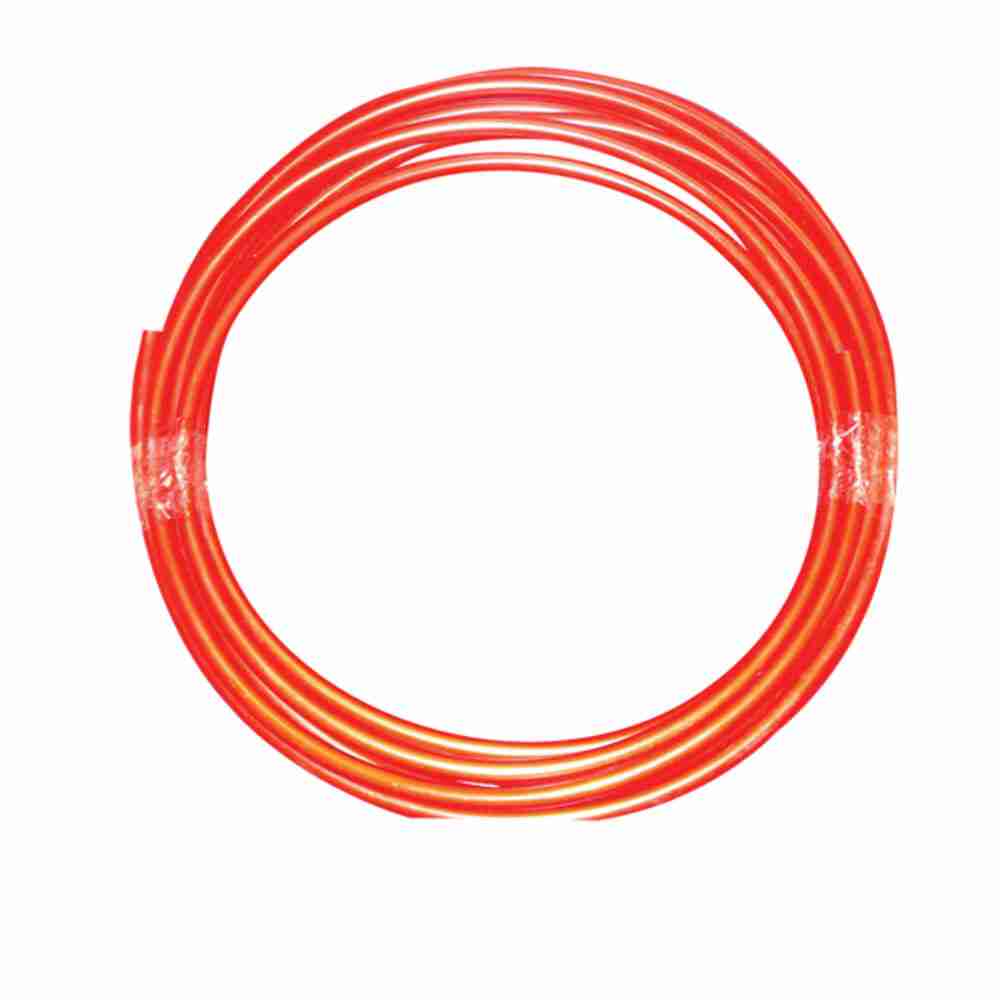

Red 12mm john guest tube

$ 1.57

Categories: , ,
  • Red 12mm john guest tubeRed 12mm john guest tube is the world’s leading manufacturer of high quality push-in fittings, tube and plastic plumbing systems to a wide variety of industries, John Guest fittings are easy to use, simply push the tubing all the way in then pull on the pipe to lock for a high water pressure sealed connection * Note Sold by the meterRed 12mm john guest tubeSold by the meterUsed with 12mm water fittingsPush-fit technologyQuick disconnection without the need for toolsHigh chemical resistanceFood Quality and suitable for potable liquids and pure water applicationsNot suitable for compressed air and vacuum applicationsFood QualityAll tube is produced in Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applicationsHOW SUPER SPEEDFIT WORKS To make a connection, the pipe is simply pushed in by hand; the unique patented John Guest collet locking system then holds the tube firmly in place without deforming it or restricting flow. Materials of construction  Super Speedfit fittings are made up of three components:  Bodies are produced in an acetal copolymer or polypropylene. ‘O’ rings are Nitrile rubber or EPDM. Collets are produced in acetal copolymer or polypropylene with stainless steel teeth. TO DISCONNECT Push in collet and remove tubeSuper Speedfit fittings are suitable for the following pressures and temperatures.Temp.Pressure5/32″ – 5/16″ 4mm – 8mm3/8″- 1/2″ 10mm – 22mmAir-20°C 16 Bar10 BarPotable Liquids and Air 1°C16 Bar 10 Bar  20°C 16 Bar 10 Bar  65°C 10 Bar  7 BarTube TolerancesSuper Speedfit fittings are offered for tubes with outside diameters to the following tolerances.Size (inches) 5/32 – 3/16 1/4 – 1/2Tolerance (inches) 0.001 / -0.003 0.001 / -0.004Size (mm)4mm – 5mm 6mm – 22mmTolerance (mm) 0.05 / -0.07 0.05 / -0.10Maximum Torque Values for Plastic Threads BSP, BSPT & NPT.Plastic threads are not generally as strong as brass threads. Customers and end users should be aware of this when choosing products for their applications. Over-tightening of plastic threads will cause undue stress and eventual cracking and leakage. The maximum torque figures for BSP and BSPT threads used in John Guest fittings in mating threads conforming to the relevant BS or International thread standards are shown below.Threads1/8 – 1/43/8 – 1/23/4Max.Torque1.5Nm3.0Nm4.0Nm
