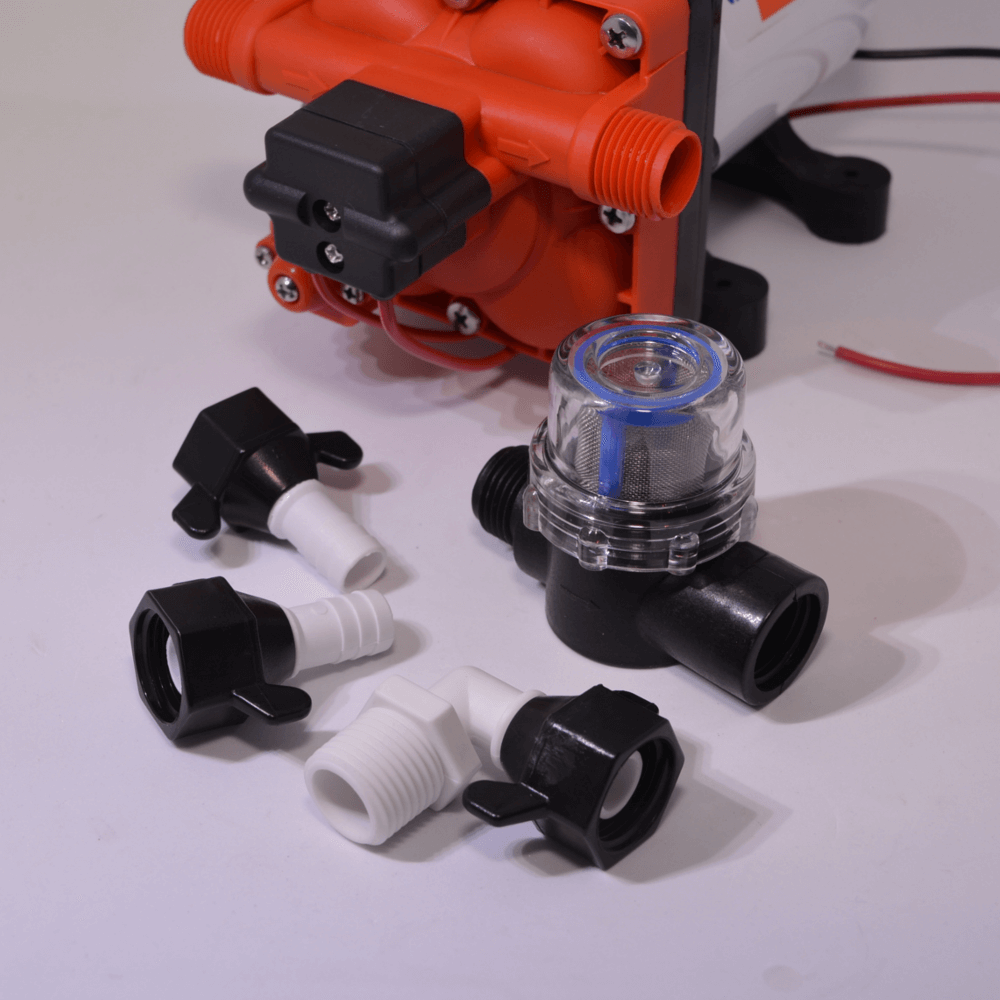

Seaflo 24v Water PumpNew Model Silent Running 42 Series Diaphragm Pump 24V 9.5LPM 55PSIProflo 24v pump available below 24v Water PumpThe Seaflo Supreme 24v water pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. The Supreme water pump is designed to run on water systems with no accumulator tank necessary. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 9.5 liters per minute.The 42 series Seaflo Supreme 12v water pump is self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They’re easy to install service with quick 1/2″ screw on fittingsPUMPType4 Chamber positive displacement diaphragm pump, self priming, capable of being run dryControl TypePressure switch & By pass controlMax Recommended Temperature60° C（140° F）Priming Capabilities6 feet (1.8 m) suction liftRe-start PressureShut-off Pressure 55PSI : 41 PSI ±5 PSI (±0.3.8 bar)Inlet/Outlet Ports1/2″-14 MNPTWeight4.0 lbs (1.9 kg)MOTORLeads16 AWG, 9.4″ (24cm) long with 2-Pin connector/LeadsDuty CycleIntermittentMax.Amp Draw4.0 AFuse10.0 ASTANDARD PUMP CONFIGURATIONSModelVoltageOpen Flow （GPM/LPM)Control TypeMax DrawShut-off Pressure (PSI/BAR)ValvesDiaphragmPortsWire ConnectionsSFDP1-030-055-4212V3.0 / 11.3switch & By pass7.5A55 / 3.8EPDMSantoprene1/2″-14 MNPT2-Pin/LeadsSFDP2-030-055-4224V3.0 / 11.3switch & By pass4.0 A55 / 3.8EPDMSantoprene1/2″-14 MNPT2-Pin/LeadsConsult factory for other available models.DIMENSIONSPRODUCT DETAILSKeyDescriptionQuantityAPump Head Assembly1BValve Assembly1CDiaphragm Assembly1DMotor Assembly1KeyDescriptionQuantity1Pressure switch12Diaphragm of Pressure Switch13Pump Head14Diaphragm15Rubber Feet16Motor1 Key Specifications:* Model: SFDP1-030-055-42* Size: L 203mm x H 111mm x W 125mm* Rated Capacity: up to 11.3lpm* Rated Voltage: 24V /4A* Shut Off Pressure; 55 psi* Replacement parts available * Warranty: 2 yearsSeaflo Water Pump Repairs in Melbourne Area Call 0410 434 558
